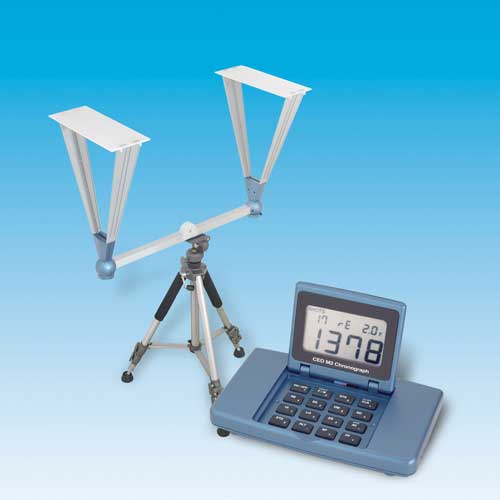

Cronografo CED M2

Advanced technology enabled CED to double the operating speed of the CED M2 chronograph incorporating a micro-controller that runs at 48 MHz. Memory storage has been expanded 500%. Stored string size can range from a single velocity up to 500 velocities and up to 500 different strings. Expanded digital chip design now gives the CED M2 the ability of reading velocities at much lower light levels. On clear days, this means the ability to chronograph from early morning till almost sunset.

The keypad has been designed in calculator-style layout. Further, the CED M2 now includes a “Hi-Average” function which provides “one touch” calculation of the average of the three highest velocities in a string. This function is ideal for calculating Power Factor at IPSC & IDPA matches. In addition, the CED M2 Chronograph adds even more features like Single function string removal, 2 ft. folding mounting bracket for all uses, the ability to recall specific strings from memory or to remove specific strings from memory, and a USB interface. Now it is easier than ever to connect your chronograph to your PC and download your saved data into the newly designed and updated CED Data Collector software program.

Technical Information: Millennium 2 Chronograph System

• Advanced software & digital circuitry = extremely fast performance!
• Over 1000 shot capacity with up to 500 string permanent memory
• Records velocities from 50 fps to 7,000 fps
• High, Low, Average, & Hi-Average velocity readings
• Extreme Spread & Standard Deviation
• Edit & Omit functions
• Built-in Calculator
• IPSC / IDPA Power Factor computation Function
• New Data Collector Software program included
• Meter or feet recording
• 10X Mode – records slower velocities in decimeters
• Voice Chip technology – Results can be heard as well as seen
• On / Off control, with no-memory loss “Auto-Shut Down” mode
• PC Downloads – USB interface for fast, software downloads of stored data
• Data Collector Software program included
• Low battery warning indicator
• Back-up battery storage
• 9-Volt battery operation (not included)
• Operating Temperature range (0°C to 50°C)

Variables that affect Chronograph performance:

• Temperature (Barrel or Environment)
• Lighting and Lighting Balance
• Muzzle Blast
• Sensor Spacing
• Fluorescent Lighting
• Power to Unit (Make sure no other items are running on 110V source)
